Original Slim KIC Start 2 SMT Reflow Oven Thermal Profiler with USB
key
KIC Start 2 Reflow Oven
1. KICstart² Advantages
2. Affordable
3. Quick, Convenient, Accurate Profiling
4. Easy to Use Profiling Software
5. Reliable, Robust Hardware
6. 24 Hour Customer Support
7. KIC Start2 thermal profiler datasheet
8. KICstart² A4datasheet
Exceptional Value
The KICstart²™ thermal profiler utilizes core technologies
developed by KIC, the world’s premier thermal profiling company,
and is supported by KIC’s worldwide organization. Packaging these
innovative technologies into a low-cost system,
the KICstart² is an ideal cost effective thermal profiler.
Ease of Use
The KICstart² profiler has everything you need to quickly acquire
an accurate profile, without complicated features that can slow
you down. For applications where all you want is your product’s
thermal profile, immediately with no fuss, the KICstart² is for
you.
The patented design concept automatically identifies the location
of each oven heating zone, so no or few measurements
are required. This design automatically corrects for different TC
locations on the part, aligning them for improved profile graph
viewing.
Production down time is reduced when using the Manual Prediction
software which enables the process engineer an instant
“trial and error” capability when searching for more suitable oven
recipes. The profiling data is automatically transferred to a
PC when plugging in the USB cable. With its easy to use and
intuitive software, new personnel can be trained in record time.
| Accuracy | ± 0.5°C |
|---|
| Resolution | Variable 0.3 to 0.1°C |
| Internal Operating Temp: | 0°C to 105°C |
| Sample Rate: | 0.002 to 10 readings/sec |
| Data Points: | 45,000 |
| PC Connection: | USB 2.0 (Std-A/Mini-B) |
| Power Requirements: | 9V alkaline battery |
| Thermocouple Compatibility |
| 6 Channel Unit: | Type K, Standard |
| Temperature Range: | -150°C to 1050°C |
| Dimensions (LxWxH): | 205mm x 66mm x 20mm |
| Thermal Shield: See Temperature Tolerance Table below for
specifications. |
Instant Process Analysis
Once your profile has completed, the KICstart² automatically
analyzes your process using the Process Window
Index™ (PWI™). The PWI is a single number that measures how well
your profile fits within your product’s thermal process window
(See the Process Window Index data sheet for details). The PWI
provides an instant and objective conclusion whether your product
profile is in spec, eliminating guesswork and opinion from process
analysis. This helps you ensure that all your products on
all your lines are manufactured with measurable, consistent
quality.
Reliable and Robust Thermal Profiler
The superior accuracy and reliability of the KICstart² is nothing
less than you would expect from KIC’s award winning product line.
The KICstart² is a six thermocouple datalogger unit that utilizes
solid state technology designed to withstand the daily or weekly
thermal cycles for years to come, for both lead- free and leaded
assemblies.

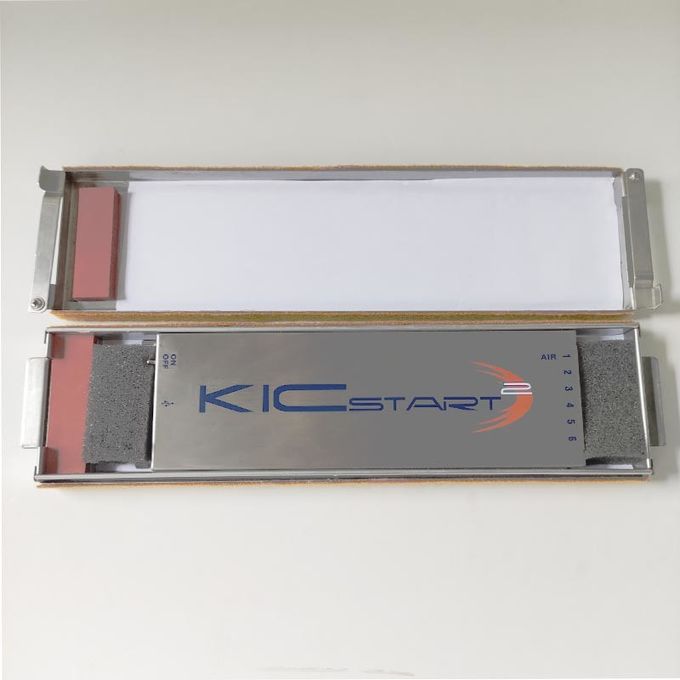

Maximum endurance in minutes at specified temperature KIC Start 2
| Shield | DIMENSIONS (mm)
(Length x Width x Height) | 150C | 200C | 250C | 300C |
|---|
| Cool Touch Stainless Steel Shield, 6 CH | 296 x 80 x 29 | 21 | 14 | 10 | 8 |
