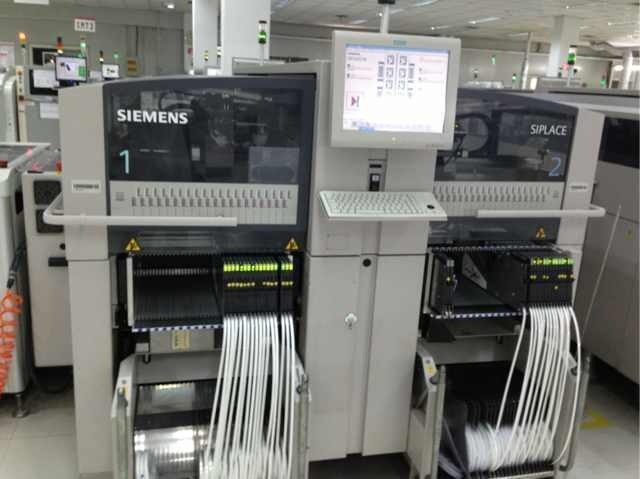

The Siemens X4i is a state-of-the-art surface mount machine widely
used in the electronics manufacturing industry for precise and
efficient placement of components onto printed circuit boards
(PCBs).
Key features of the Siemens X4i:
1. High-Speed Placement: The machine offers high-speed and accurate
component placement, enabling efficient production cycles.
2. Versatility: It is capable of handling a wide range of component
types, including resistors, capacitors, integrated circuits,
connectors, and more.
3. Vision System: The Siemens X4i is equipped with an advanced
vision system for precise component alignment and inspection before
placement, ensuring high placement accuracy.
4. Multi-Nozzle System: It features a multi-nozzle system that
allows for simultaneous placement of components, further improving
production efficiency.
5. Intelligent Feeder Management: The machine includes intelligent
feeder management capabilities to optimize component changeover and
reduce setup time.
6. User-Friendly Interface: The Siemens X4i has an intuitive and
user-friendly interface, making it easy to operate and set up for
different production requirements.
7. Flexibility: It supports various PCB sizes and shapes, ensuring
adaptability to different manufacturing applications.
8. Reliable Performance: The Siemens X4i is designed for
reliability, with features to minimize errors and optimize
production quality.
Here's a step-by-step guide on using the Siemens X4i:
1. Prepare the PCB and components: Ensure that the PCB is clean and
properly prepared. Organize and sort the components in appropriate
containers.
2. Machine Setup: Power on the Siemens X4i and configure the
necessary settings, including PCB size, component types, and feeder
assignments.
3. Prepare Feeders: Load the feeders with the required components,
ensuring they are properly aligned and securely placed.
4. Vision System Calibration: Calibrate the vision system by
aligning the fiducial marks on the PCB. This ensures accurate
component placement.
5. Programming: Create or load a program specifying the component
placement sequence, coordinates, and any necessary adjustments.
6. Start Placement Process: Initiate the placement process, and the
machine will automatically pick up the components from the feeders
and place them onto the designated positions on the PCB.
7. Inspection: After placement, visually inspect the PCB to ensure
correct component alignment and placement.
8. Repeat the process: If there are more components to be placed,
repeat steps 3 to 7 until the production run is complete.
For detailed instructions specific to the Siemens X4i model, refer
to the manufacturer's user manual.
