    SMT Chip Mounter machine High Speed HANWHA Samsung CP40 Pick And Place Machine

    Ask Lasest Price
    Brand Name : SAMSUNG/ HANWHA
    Model Number : CP40
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal, Credit card
    Supply Ability : 20 sets per week
    Delivery Time : 5~7 days
    • Product Details
    • Company Profile

    SMT Chip Mounter machine High Speed HANWHA Samsung CP40 Pick And Place Machine

    Used SMT pick and place machine Samsung CP40 CP45 CP45FV CP45NEO Chip Mounter

    The CP45NEO pick and place machine is a sophisticated equipment used in the electronics manufacturing industry for

    high-speed and accurate placement of electronic components onto printed circuit boards (PCBs). It offers advanced functionality

    and features that enhance productivity, precision, and efficiency in the assembly process.


    Product desription:

    1. Samsung pick and place machine

    2. CP series

    3. Mounting speed: around 8000-13000CPH

    4. Feeders: 100 pcs 8mm feeders

    5. Applicable components: SOP, IC, BGA, 0402 0603 0805 1206...

    6. Nozzle type: N, TN and CN series, like TN/CN030 040 065...

    7. Machine system: Windows

    8. Power supply: 220/110V


    Main Features:
    1. Control Syetem: Ball screw and Panasonic servo motors
    2. Vision system: one down-looking camera. Six CCD cameras and one HD camera.
    3. Three or six placement heads can pick up and calibrate components at one time.
    4. Up to 108 feeder slots, Samsung CP standard feeders are available.
    5. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.
    6. Video tutorials make you operate machine easily


    Our advantages

    We supplies different kinds of products. High quality and favorable price.

    We're pleased to get your Inquiry and we will come back to as soon as possible.

    We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the

    customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our

    service, we provide the products with good quality at the reasonable price.


    Production specification

    ModelCP40CP45FVCP45NEO
    Manufacturing yearAbout 2000About 2004About 2006
    Placement heads366
    Mounting speed8000CPH12000CPH13000CPH
    Spare partsSanyo motorSanyo motorPanasonic motor
    Feeder slots108108108
    Cameravision camera+flying camera+mark camera
    Power supply220V
    Machine weight1600KG
    Package dimension1650x1540x1420CM

    Functionality:
    1. Component Placement: The CP45NEO pick and place machine is designed to precisely pick electronic components from the component feeders and accurately place them onto the designated locations on the PCBs. It utilizes a combination of vision systems, robotic arms, and placement heads to achieve fast and accurate component placement.
    2. High-Speed Operation: The machine is capable of high-speed operation, ensuring rapid placement of components onto the PCBs. It can achieve high throughput rates, reducing production cycle times and increasing overall productivity.
    3. Component Compatibility: The CP45NEO pick and place machine supports a wide range of electronic components, including surface mount devices (SMDs), through-hole components, and odd-shaped components. It can handle various package types, such as resistors, capacitors, integrated circuits (ICs), connectors, and more.
    4. Vision Systems: The machine is equipped with advanced vision systems that allow for component alignment, verification, and correction. The vision systems can detect and correct for any variations in component orientation, ensuring accurate placement even for components with irregular shapes or variations in presentation.
    5. Feeder Management: The machine manages and controls component feeders, which hold and supply the components to the pick and place head. It can handle multiple feeders simultaneously, enabling efficient component changeover and reducing setup time.
    6. Programming and Control: The CP45NEO pick and place machine featuresadvanced programming and control capabilities. It allows operators to program and configure the machine for specific PCB layouts and component requirements. The machine can store and recall multiple programs, making it easy to switch between different assembly jobs.

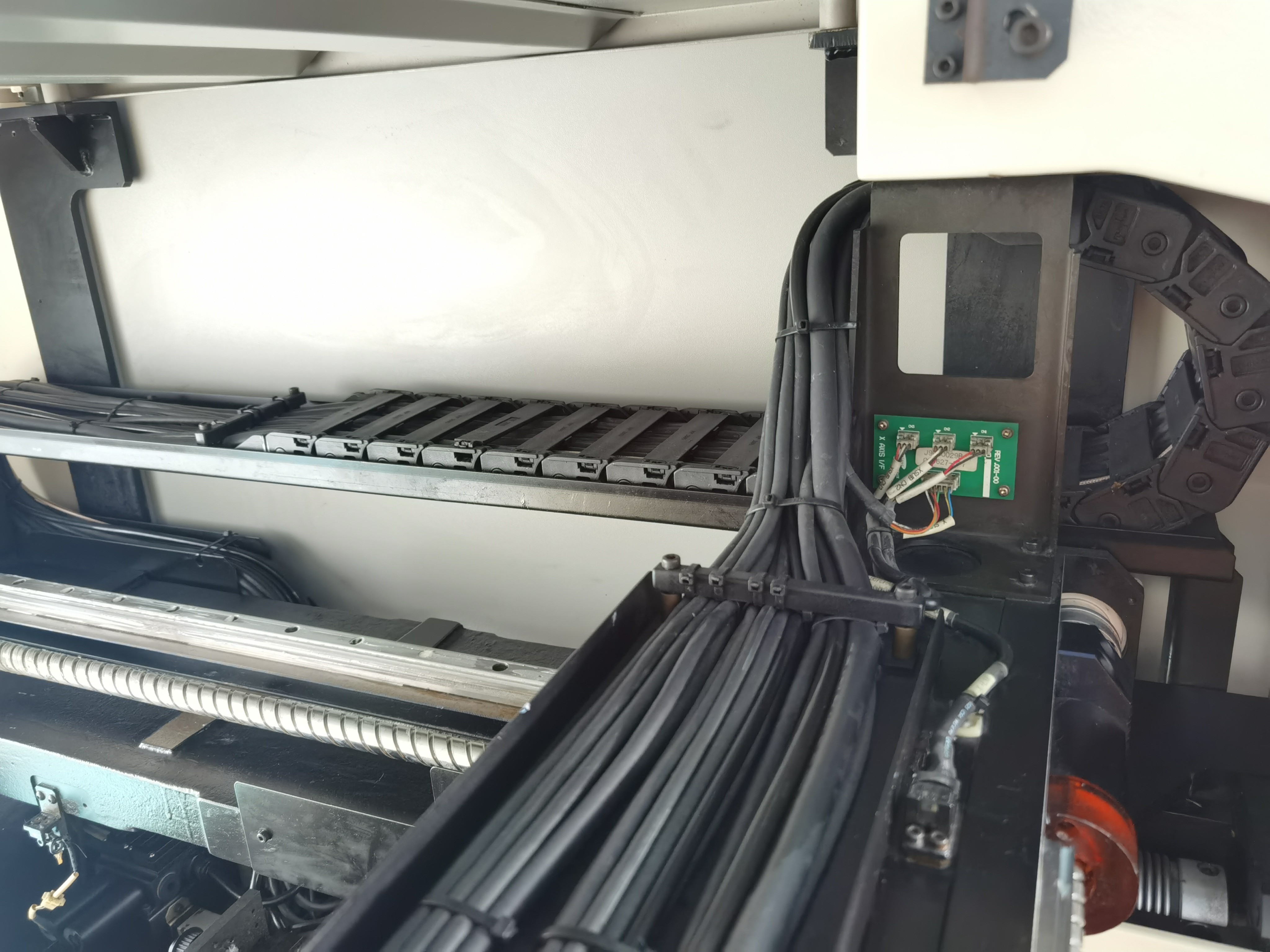

    Product show

    SMT Chip Mounter machine High Speed HANWHA Samsung CP40 Pick And Place Machine
    SMT Chip Mounter machine High Speed HANWHA Samsung CP40 Pick And Place Machine
    SMT Chip Mounter machine High Speed HANWHA Samsung CP40 Pick And Place Machine
    Quality SMT Chip Mounter machine High Speed HANWHA Samsung CP40 Pick And Place Machine for sale
