Panasonic Electric CM602 Feeder Calibration Jig SMT Production Line

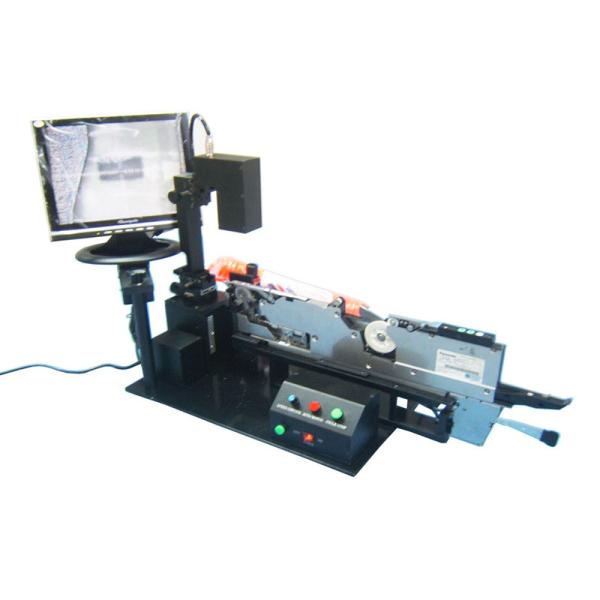

ORIGINAL SMT PANASONIC CM602 FEEDER CALIBRATION JIG

It is essential for this equipment that enhanced productivity , installation and quality improvement

As the high efficiency vision camera is asked in order to investigate precisely and repair the error of device position

which results from the modification and wear of tape feeder in the SMD device.

The Feeder, which supplies resources in the SMT production line, should be under clear condition continuously

because it has relatively close correclation with the quality of a current line, production efficiency and loss.

Convenience in use:

1. The acquisition for the rectangular coordinate of X-Y direction.

2. Check for the existence, transformation, user in the feeder

3. The installation is to euip it with actual device and consolidation in feeder base

4. Lens` safe arrival part, CCD Camera, the precise micro controller of X, Y, Z axis

5. The simple calibration for removing or taking feeder easily

6. It is correction as measurement with CCD Camera.

7. The use pressure is able to control in the regulator and air cylinder.

8. Verification and correction available worker`s convenience and well carriage by the work desk.

Shenzhen WenZhan electronic technology co., LTD. Is a professional SMT pick&place machine and the machine parts service providers.Company mainly provide SAMSUNG SMT machine parts/YAMAHA SMT machine parts/FUJI SMT machine parts/ ,

SMT machine parts/JUKI SMT machine parts/SONY SMT machine parts’ sales and maintenance services.

Our company supplies different kinds of products. High quality and favorable price.
We're pleased to get your Inquiry and we will come back to as soon as possible.
We stick to the principle of "quality first, service first, continuous improvement and
innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. T
o perfect our service, we provide the products with good quality at the reasonable price.

Photos on exhibition

SMT machines and related products:
1.SMT equipment and accessories,nozzles, feeder, feeder parts, cutter, filter, guide, tape, mortor, belt, cylinder,

smt grease/lubricant, THK grease gun ,bearing,SMD parts counter,sensor etc.
2. Nozzles & feeders&their parts for fuji, for Juki, for Yamaha, for Samsung, for Siemens, for ,

for Sony....etc,all of them have large stock.
3. We sell and recycle used SMT machine
