main feature
A. Multi-temperature zone design, more temperature control points,
to meet the requirements of different temperature curves
B. Effectively eliminate voids, the total void area can be
controlled below 1%
C. Efficient production capacity, the average production cycle is
30~60 seconds
D. High-efficiency oil-free vacuum pump unit for shortest
depressurization time
E. Efficient flux recovery system to prevent flux residues
Key Features
Highest Yield Reflow Oven!
Lowest Delta T on the board
Lowest Nitrogen & Electrical Usage!
Maintenance Free!
VOID Free Reflow Oven – with Vacuum option
Industry 4.0 Compatibility
Integrated Cpk software at No Charge!
Specifications
| Machine Model | Heller 1936MK7 |
| Heating Zones | Top 10 / Bottom 10 |
| Cooling Zones | Top 3 |
| PCB Width | 50 - 560 mm |
| Max Conveyor Speed | 188 cm/min |
| Cross-Belt Temperature Tolerance | ± 2 ℃ |
| Accuracy of Temperature Controller | ± 0.1 ℃ |
| Conveyor Width Adjustment | Manual Motor Control |
| Operating System | Windows 10 |
| Overall Dimensions | W5900 x D1520 x H1440 mm |
| Typical Net Weight | Approx. 2120 kg |
The latest MK7 reflow soldering system
1. The latest low roof design
2. The latest low-top cover design is adopted, which is convenient
for customers to operate and maintain. The surface temperature of
the machine is lower, which is environmentally friendly and
energy-saving.
Optimized new heating module
Optimized low-height heating module to achieve the best temperature
uniformity; can reduce nitrogen consumption by up to 40%, balance
airflow saving Nitrogen. The new heating wire has higher heating
efficiency and longer life.

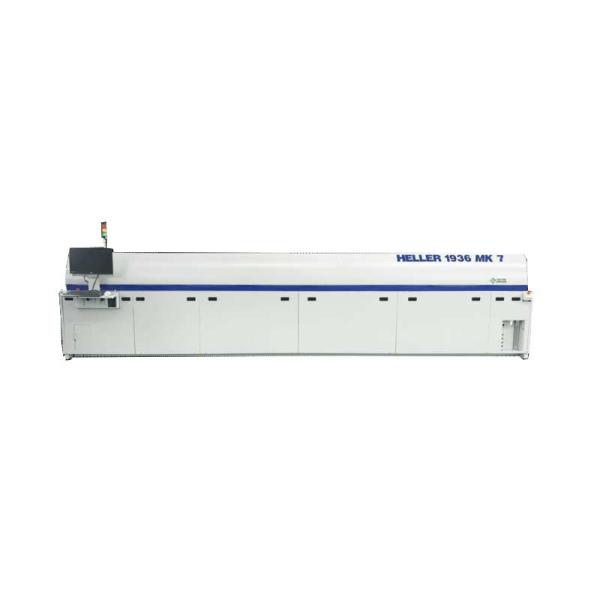

HELLER 1936 MK7 SMT Reflow Oven
Overall machine length: 590 cm (232″)
Number of heating zones: 10
Number of cooling zones: 3 upper cooling zone (standard) / lower
cooling zone and external cooling zone (optional)
HELLER 2043 MK7 SMT Reflow Oven
Overall machine length: 678 cm (267″)
Number of heating zones: 13
Number of cooling zones: 3 upper cooling zone (standard) / lower
cooling zone and external cooling zone (optional)
HELLER 2049 MK7 SMT Reflow Oven
Overall machine length: 744 cm (292″)
Number of heating zones: 15
Number of cooling zones: 4 upper cooling zone (standard) / lower
cooling zone and external cooling zone (optional)
HELLER 2156 MK7 SMT Reflow Oven
Overall machine length: 869 cm (342″)
Number of heating zones: 17
Number of cooling zones: 5 upper cooling zone (standard) / lower
cooling zone and external cooling zone (optional)
