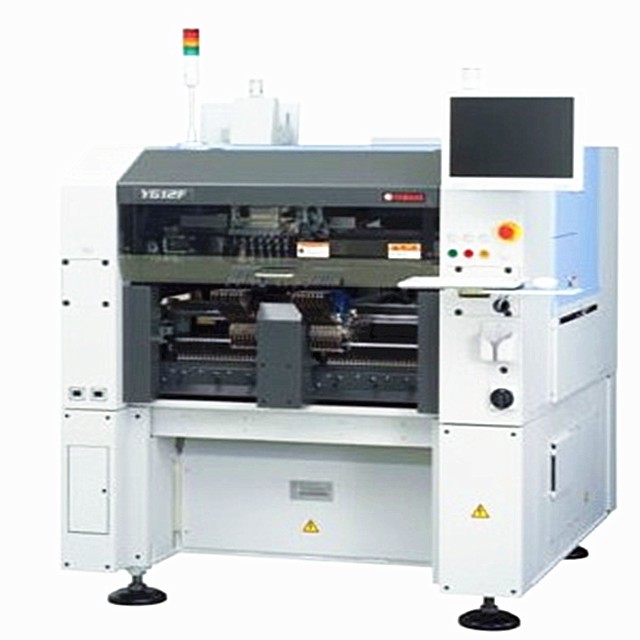

The YG12 pick and place machine is a highly efficient and versatile
machine used in the electronics manufacturing industry.
It is designed to automate the process of picking up electronic
components and accurately placing them onto printed circuit boards
(PCBs).
The machine offers advanced features that ensure precise component
placement, high-speed operation, and excellent reliability.
| Name | YAMAHA Yg12 Pick and Place Machine |
| Brand | YAMAHA |
| Model | Yg12 |
| Specification | YAMAHA Yg12 Pick and Place Machine |
| Condition | original/copy |
| Quality | top qualiy |
| Stock | large |
| Payment | L/C T/T D/P Western Union Paypal Money Gram And Others |
| Shipment | In three days |
| Warranty | 1 year |
| Delivery | Fedex,ups,dhl,as required |
| Package | carton box with foam protect |
Functionality:
1. Component Feeding: The YG12 pick and place machine is equipped
with multiple feeders that hold different types of electronic
components, such as resistors, capacitors, integrated circuits, and
connectors. These feeders supply the components to the machine for
the placement process.
2. Vision System: The machine incorporates a sophisticated vision
system to identify and locate components accurately. It uses
cameras and image recognition algorithms to detect the position,
orientation, and alignment of components, ensuring precise
placement on the PCB.
3. Pick and Place: The YG12 machine utilizes robotic arms with
vacuum nozzles to pick up components from the feeders. The arms
move swiftly and precisely to pick the components and place them
onto the designated positions on the PCB. The machine supports both
single-component and multi-component pick and place operations.
4. Alignment and Inspection: After placing the components, the YG12
machine performs alignment checks and inspections to ensure proper
positioning and solderability. It can verify the alignment of
components using the vision system and detect any defects or errors
during the placement process.
5. Programming and Control: The machine is controlled through a
user-friendly interface, which allows operators to program the pick
and place sequence, adjust placement parameters, and monitor the
operation in real-time. Programming can be done manually or by
importing CAD (Computer-Aided Design) data.
Usage Instructions:
1. Setup: Prepare the machine by loading the appropriate feeders
with components and ensuring the PCB is securely fixed on the
machine's worktable.
2. Programming: Use the machine's interface to create or import the
pick and place program. Define the component positions,
orientations, and any specific placement requirements.
3. Calibration: Calibrate the machine by aligning the vision system
and adjusting placement parameters to ensure accurate component
detection and placement.
4. Operation: Start the pick and place process, and the machine
will automatically pick components from the feeders and place them
onto the PCB according to the programmed sequence. Monitor the
operation for any errors or issues.
5. Inspection: Once the placement is complete, inspect the PCB to
verify the alignment and solderability of the components. Perform
any necessary rework or adjustments if required.
6. Maintenance: Regularly clean the machine, inspect and replace
worn-out parts if needed, and follow the manufacturer's maintenance
guidelines to ensure optimal performance and longevity.
The YG12 pick and place machine streamlines the assembly process,
reduces manual labor, and improves production efficiency in
electronic manufacturing. Its advanced features and user-friendly
interface make it a valuable tool for achieving accurate and
reliable PCB assembly.
We have full range of SMT pick and place machine For
FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,feeder,nozzle,
smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine
