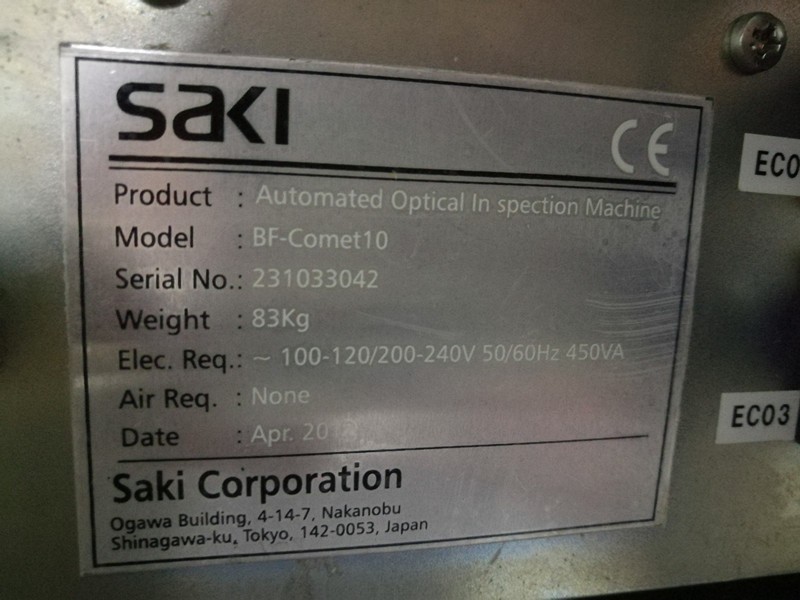

    SAKI Automated Optical Inspection Machine , BF-Comet10 AOI Equipment

    Ask Lasest Price
    Brand Name : SAKI
    Model Number : SAKI BF-comet10 AOI machine
    Supply Ability : 10 Piece/Pieces per Week
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal, Credit card
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    SAKI Automated Optical Inspection Machine , BF-Comet10 AOI Equipment

    Low Cost SMT SAKI BF-comet10 AOI machine for PCB LED SMT Assembly Line Machine

    Name: SAKI AOI machine
    Brand: SAKI
    Model: SAKI BF-comet10 AOI machine
    Specification: SAKI BF-comet10 AOI machine
    Condition: original/copy
    Quality: top qualiy
    Stock: large
    Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
    Shipment: In three days
    Warranty: 1 year
    Delivery: fedex,ups,dhl,as required
    Package: carton box with foam protect


    BF-Comet10&18
    1. Resolution: 10um,18um
    2. PCB size: 250mm x 330mm
    3. SAKI’s original alternate line-scan technology which offers the fastest inspection speed
    4. Newly developed color capturing system enables to achieve a further rapid inspection compared to onventional

    model (BF18D-P40). (It takes only 7 seconds to scan M-size PCB by BF-Comet18)
    5. BF-Comet10 which has 10 micron resolution is developed for a high density mounting PCB inspection

    (01005chip and 0.4mm pitch lead)
    6. BF-Comet offers a compact foot print bench-top system and is also suitable for the mounting part inspection

    after the process of the hand insertion ,and the dip part inspection.


    Desktop Automatic optical inspection equipment Saki BF-comet10
    Equipment Size:
    580x850x452mm
    Equipment Weight:
    80kg
    Equipment power supply:
    AC200-240V,400VA
    Can detect PCB size:
    50x50~250x330mm
    Image solution:
    10um,18um image
    Scanning time:
    250x330mm
    PCB:
    Approx. 7 sec
    Camera:
    Color linear CCD
    Detection station:
    Suitable for testing after printing, pre-furnace and after
    Furnace detection items:
    Solder Paste
    Detection:
    There is no, offset, less tin, multi-tin, broken, contaminated
    Parts detection:
    missing parts, offset, skew, erection, side, flip, polarity inverse, wrong parts, breakage, IC surface Character differentiation
    Solder spot detection:
    tin, tin less, even tin, pin false welding, foot, plate pollution
