SMT Full Automatic PCB Solder Paste Screen Printing Machine
Name: SMT Full Automatic PCB Solder Paste Screen Printing Machine
Brand: ODM
Model: L12
Specification: Full Automatic PCB Solder Paste Screen Printing
Machine
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect
1. Product Functions:
L12 a high precision automatic solder paste screen printer designed
for high precision screen printing or
stencil printing in SMT industry.
2. Product Features:
a) Support wide spectrums of PCB sizes from 80mm x 50mm to 1200mm x
350mm and PCB thickness
from 0.4mm to 6mm.
b) High printing resolution:
1. High positional accuracy, repeated positioning accuracy
±0.015mm; printing accuracy 0.03mm
2. Support glue printing.
c) Automatic control improves production efficiency, quality
control and saves production cost:
1. Automatic PCB calibration
2. Squeegee pressure adjustable
3. Automatic printing
4. Automatic stencil cleaning (dry-type ,wet-type,Vaccum)
e) Multi-functional PCB positioning system for convenient and
accurate PCB positioning.
f) Programmable PCB lifting platform ensure the PCB to lift to a
proper height
g) Upward and downward visual positioning.
h) Built-in image processing system

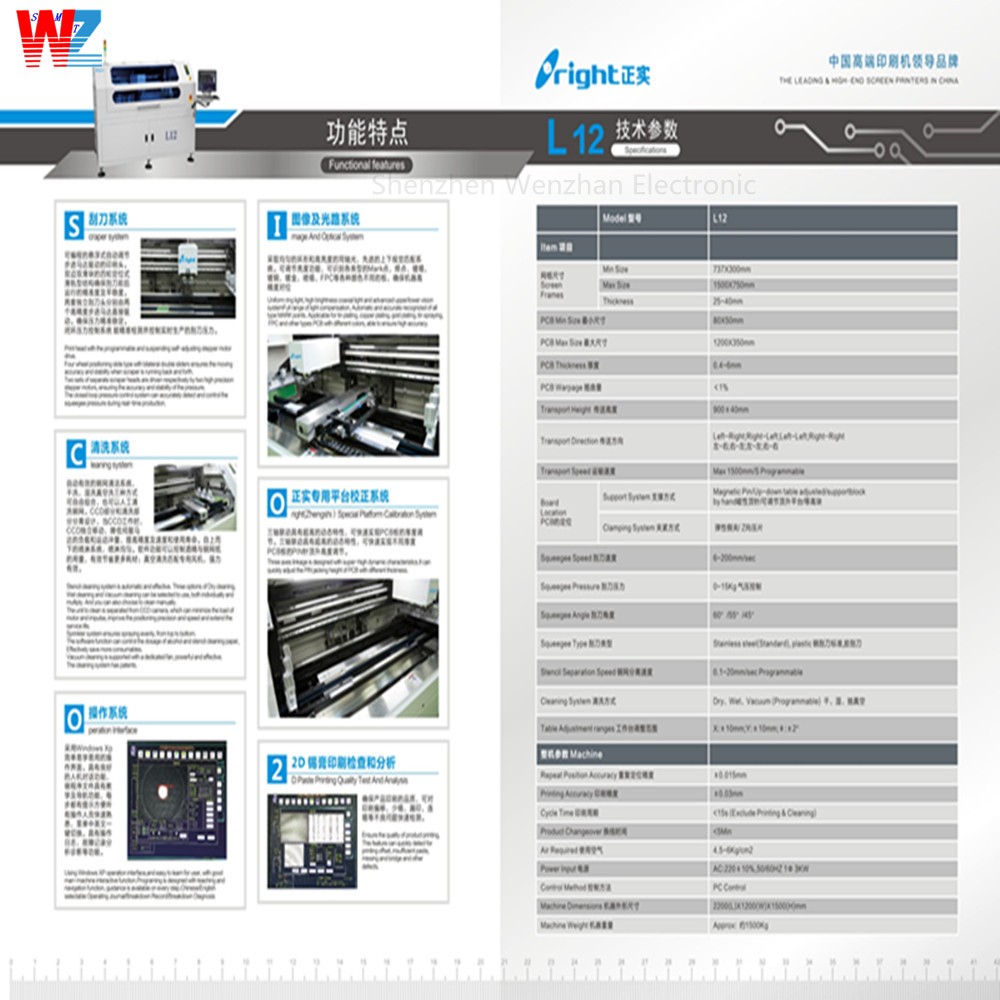

| Model | G12 | | Item | | | | Sreen Frames | Min Size | 737*300mm | | Max Size | 1500*750mm | | Thinkness | 25~40mm | | PCB Min Size | 80*50mm | | PCB Max Size | 1200*350mm | | PCB Thickness | 0.4~6mm | | PCB Warpage | <1% | | Transport Height | 900±40mm | | Transport Direction | Left-Right,Right-Left,Left-Left,Right-Right | | Transport Speed | Max 1500mm/s(Programmable) | | Board Location | Support System | Magnetic Pin/Up-down table Adjusted/supportblock | | Clamping System | Side clamping,Vacuum nozzle | | Print Head | Two independent motorised print head | | Squeegee Speed | 6~200mm/sec | | Squeegee Pressure | 0~15KG(motor control) | | Squeegee Angle | 60°/55°/45° | | Squeegee Type | Stainless steel(Standard), plastic | | Squeegee Separation Speed | 0.1~20mm/sec Programmable | | Cleaning System | Dry,Wet,Vacuum (Programmable) | | Table Adjustment Ranges | X:±10mm;Y:±10mm;θ:±2° | | Solder Paste Inspection | 2D Inspection Standard | | Machine | | | Repeat Position Accuracy | ±0.015mm | | Printing Accuracy | ±0.03mm | | Cycle Time | <15s (Exclude Printing & Cleaning) | | Product Changeover | <5Min | | Air Required | 4.5~6Kg/cm2 | | Power Input | AC:220±10%,50/60HZ,3KW | | Control Method | PC Control | | Machine Dimendions | 2200(L)X1200(W)X1500(H)mm | | Machine Weight | Approx:1500Kg |
|
Related Product
We have full range of SMT pick and place machine For
FUJI,JUKI,SAMSUNG,YAMAHA,PANASONIC and so on,
feeder,nozzle,smt pick and place machine,PCB Conveyor,
cylinder,and vibration feeder,anything you need ,just tell me!
The main brand is Fuji YAMAHA Samsung Panasonic SONY heavy machine
1. SMT lubricating oil
2. SMT parts
3. Nozzle and feeder
4. SMT belt and other parts in the machine
