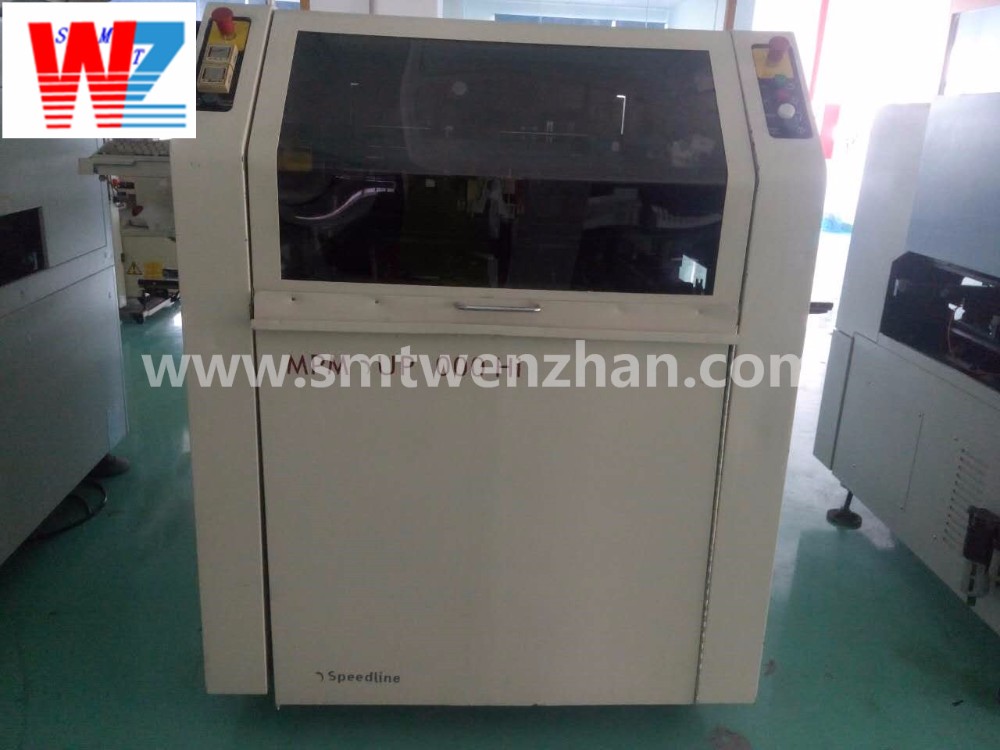

Professional SMT full automatic PCB Screen Stencil Printing Machine with MPM UP2000 HIE

Screen Printer

Name: SMT PCB Printer Machine
Model: Automatic PCB Printer MPM UP2000
Specification: Automatic PCB Printer MPM UP2000
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect

PCB SIZE: 50mmx 50mm~508mm x 406mm
PCB THICKNESS: 0.015’’~0.500’’1524mm/sec
Bottom parts gap: 0.5’’(1.0’’
TRANSFER SPEED: MAX()
PCB fix ways: vacuum chuck + Y-support base + Z-Grip finger)
Rail fixed: front/rear fixed
Print area: 457mmx 406mm(x,y)
Print speed: 6.35mm~305mm/sec
Version datum points: 2~5pcs datum points
Print cycle time:〈11sec
power: 115VAC 60Hz,30AVAC 50Hz 20A
machine size: 1606.3x1168.4x1636.7mm
weight: 800kg

The UP 2000 HiE is built for the most demanding production requirements, offering superior performance and flexibility in a

compact, sturdy cost-effective printer. This machine combines a remarkably compact footprint with large board capability,

resulting in exceptional productivity per square foot. In addition, the printer is user-friendly and has unlimited flexibility

with advanced options, such as closed-loop squeege pressure control, an automatic support pin placement system and

full environmental control.

Print Area 18" x 16" (457 x 406mm)
User-friendly software maximizes uptime
Alignment Accuracy: +/- 0.001" at 6 sigma, and cycle time of less than 11 seconds
Advanced vision algorithms quickly process fiducials "On-the-Move" for efficient image capture
Self leveling print head allows squeegee pressure, print speed and down stop to be independently adjusted for both front

and rear squeegee blades for optimal print quality
