The PCB loader machine, also known as a PCB loader or PCB magazine
loader, is a specialized equipment used in the electronics
manufacturing industry to automate the loading and unloading of
printed circuit boards (PCBs) into and out of production equipment.
It offers a range of functionality and features that enhance
efficiency, productivity, and PCB handling processes.
SMT PCB Handling Equipment , Pcb Loader Unloader For Circuit Board
Name: Cheap used and second hand SMT PCB unloader mahcine
Brand: ODM
Model: Cheap used and second hand SMT PCB unloader mahcine
Specification: Cheap used and second hand SMT PCB unloader mahcine
Condition: original/copy
Quality: top qualiy
Stock: large
Payment: L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment: In three days
Warranty: 1 year
Delivery: fedex,ups,dhl,as required
Package: carton box with foam protect
| Description | HY-250ULD | HY-330ULD | HY-390ULD | HY-460ULD |
| PCB delivery height | 900 +/- 20mm |
| Direction | L-R/ R-L |
| PCB size(L*W)(MM) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| Time Feed PCB | Approx 6 seconds or Specify |
| Magazine Change Over time | Approx 20 seconds or Specify |
| Indexing pitch | 1-4(10mm pitch) or Specify |
| Power Source & Consumption | 100. 230VAC 1Ph 300VA max |
| Air Pressure | 4-6 bar |
| Air Consumption | 10 ltr/min max |
| PCB Thickness | 0.4mm min |
| Magazine Rack Size(L*W*H)(MM) | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Machine Dimension | 1700*780*1200 | 1900*860*1200 | 2200*920*1200 | 2520*1120*1200 |
| weight | 160kg | 200kg | 240kg | 270kg |
Functionality:
1. PCB Loading: The PCB loader machine can load PCBs from a stack
or magazine and feed them into downstream production equipment,
such as pick and place machines or reflow ovens. It uses mechanical
arms, belts, or conveyors to transfer PCBs smoothly and accurately,
minimizing the risk of damage or misalignment.
2. Magazine Handling: The machine can handle PCB magazines or
racks, which hold multiple PCBs stacked vertically. It can
automatically position and secure the magazine for efficient
loading and unloading operations. Some models may include features
like magazine indexing or rotation for improved accessibility.
3. PCB Alignment and Orientation: The PCB loader machine ensures
proper alignment and orientation of the loaded PCBs. It may utilize
sensors, vision systems, or mechanical mechanisms to detect and
adjust for any misalignment or rotation of the PCBs, ensuring
accurate positioning for subsequent production processes.
4. PCB Stacking and Unloading: In addition to loading, the machine
can also stack and unload PCBs after production. It carefully
stacks the finished PCBs in magazines or designated containers,
ready for transportation or inspection. This feature streamlines
the workflow and improves the handling of finished PCBs.
5. Conveyor Interface: The machine interfaces with the production
line conveyor system to seamlessly transfer PCBs between different
machines or workstations. It can synchronize the movement of PCBs
with the conveyor, ensuring smooth and efficient material flow.
6. Control and Monitoring: The PCB loader machine often includes a
control system with a user-friendly interface to configure
settings, monitor production progress, and diagnose any issues. It
may provide features such as error detection, production
statistics, and remote monitoring capabilities for enhanced
operational control.
Usage Range:
The PCB loader machine is used in various applications within the
electronics manufacturing industry, including:
1. PCB Assembly Lines: It is a crucial component of automated PCB
assembly lines. By automating the loading and unloading of PCBs, it
reduces manual labor, increases production throughput, and
maintains consistent workflow.
2. High-Volume Production: The PCB loader machine is particularly
useful in high-volume production environments. It enables
continuous and efficient loading of PCBs, ensuring uninterrupted
production and maximizing output.
3. Multi-Model Production: In scenarios where multiple PCB models
or designs are manufactured on the same assembly line, the machine
facilitates quick and accurate changeovers. It can handle different
PCB sizes and configurations, allowing for versatile production
without significant downtime.
4. Integration with Other Equipment: The machine can be integrated
with various production equipment, such as pick and place machines,
stencil printers, or inspection systems. It acts as a bridge
between these machines, ensuring smooth material flow and
optimizing the overall production process.
5. Quality Control and Traceability: The PCB loader machine may
incorporate features for quality control and traceability. It can
integrate with inspection systems to detect defective PCBs and
divert them for rework or rejection. Additionally, it may offer
barcode or RFID scanning capabilities to track the movement and
status of PCBs throughout the production line.
The PCB loader machine plays a vital role in automating the loading
and unloading processes in PCB assembly. It enhances efficiency,
reduces labor costs, and improves overall productivity in
electronics manufacturing operations.

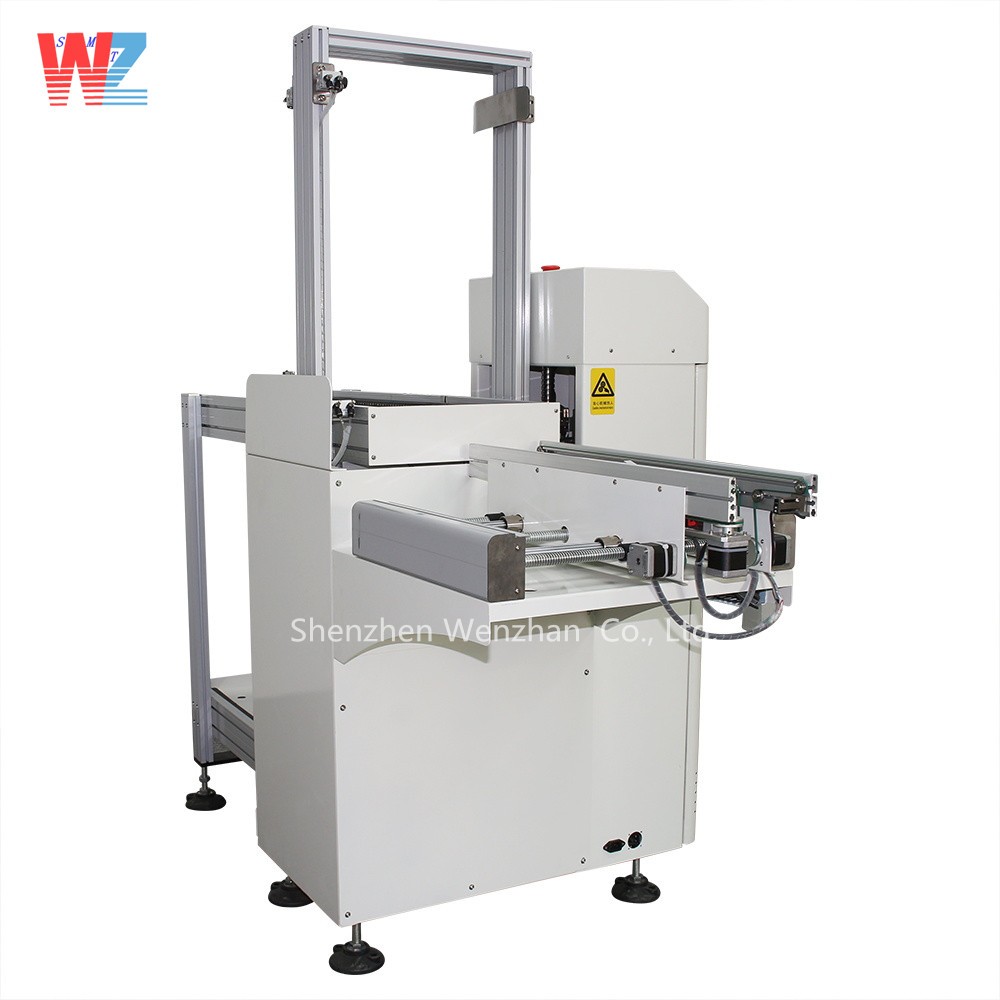

Photo show
