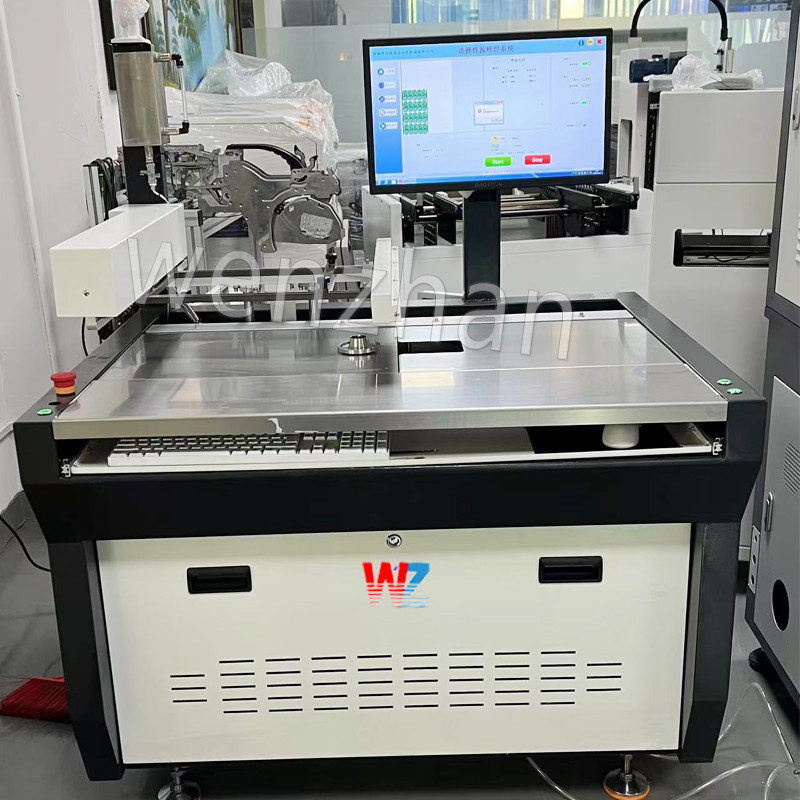

Desktop offline selective soldering machine
The Offline Selective Soldering Machine is a specialized device
used in electronics manufacturing for soldering components onto
printed circuit boards (PCBs) without the need for a complete
assembly line setup. This machine is particularly useful for small
to medium production runs and for reworking specific areas of a
PCB.
The Offline Selective Soldering Machine is an essential tool for
achieving high-quality soldering in electronics manufacturing,
providing precision, efficiency, and versatility for various
applications.
1.Software
All software system developed by
base on Windows7 system, with good trace-ability.
Use scanned picture as background for path programming, moving
speed,
dwell time, empty move speed, Z height , wave height etc all
programmed for different solder site.
Critical parameters are totally under
monitoring by PC software, like temperature, speed, pressure etc.
2. motion system
Motion table was designed base on lighting concept.
Servo motor and stepping motor provide motion power, ball screw
synchronous belt and
linear guide rail guide, accurate positioning, low noise, and
smooth movement
3.fluxing system
Japan original injection valve, adapt to various flux
Flux is stocked by PP plastic pressure tank, make sure pressure
stable without influenced of amount of flux.
4. solder pot
Tin furnace temperature, nitrogen
temperature, wave height, etc. can be set by computer
The tin furnace liner is made of titanium alloy stainless steel
without leakage. External heating plate, uniform heat transfer
N2 online heating system, to wet the soldering perfectly and reduce
the solder dross.
5. PCB Plate placement mechanism
Load board manually and unload board manually
6. Machine shell
Metal welding structure, with thick
metal plate as base, so to reduce vibration and make machine more
stable.
Machine specs
| Machine name | WZ-200 | | dimension | L1100mm X W790mm X H1500mm(不含底座) | | general power | 3.1kw | | consumption power | 1kw | | power supply | 220V 50HZ | | net weight | 280KG | | reuiqred air source | 3-5 Bars | | required air flow | 8-12L/min | | required N2 pressure | 4-6 Bars | | required N2 flow | 3.5 立方/小时 | | required N2 purity | >99.998% | | carrier | Can be used as needed | | max solder area | L300 X W250MM | | PCB thickness | 0.2mm-----6mm | | pcb edge | 3mm 以上 | | controlling | 电脑 Industrial PC | | Loading board | Manual | | Unloading board | Manual | | Operating height | 700+/-30mm | | conveyor up clearance | unlimited | | conveyor bottom clearance | 40MM | | motion axis | X, Y, Z | | motion control | Servo+stepper | | position accuracy | + / - 0.1 mm | | chassis | Steel structure welding | | Flux management | | flux nozzle | jet valve | | flux tank capacity | 1L | | flux tank | 助焊剂盒 | | solder pot | | standard pot number | 1 | | solder pot capacity | 12 kgs | | solder temperature range | PID | | melting time | 30--40 Minutes | | max solder temperature | 350 C | | solder heater | 1.2kw | | solder nozzle | | nozzle dim | Customized shape | | material | alloy steel | | standard equipped nozzle | 5 个/ 炉( 内 径 3mm, 4mm, 5mm,6mm. | | N2 management | | N2 heater | standard configuration | | N2 temp range | 0 - 350 C | | N2 consumption | 3.5m³/Hour/soder nozzle |
|
|
