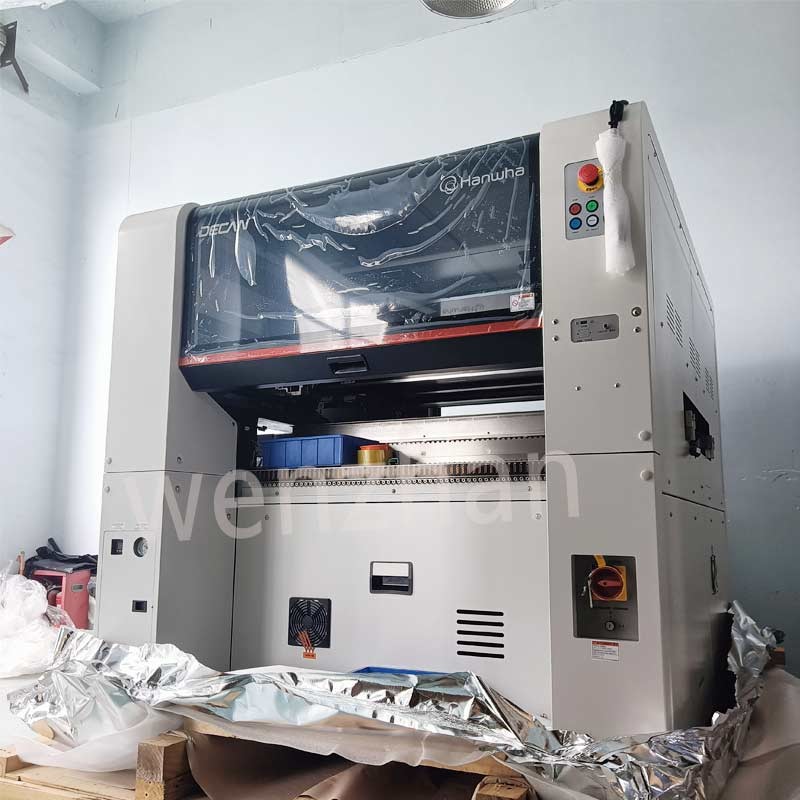

SAMSUNG Hanwha DECAN S1 SMT Pick And Place Machine
SAMSUNG DECAN S1 Fast & Flexible Mounter
Speed : 47,000 CPH (Optimum)
Spindle/Gantry : 10 Spindles/1Gantry
Parts: 03015~□55mm(H15),L75mm
Accuracy : ±28μm @ Cpk≥ 1.0/Chip
±30μm @ Cpk≥ 1.0/IC
Max.PCB : L510xW510 (Standard)
L1,500xW460 (Max)
Highest performance among chip Mounters of the same class
Places microchips stably
Increased convenience of operation
Hanwha Pick and place machine DECAN S2, Samsung Pick and place
machine DECAN S2, Hanwha chip mounter
DECAN S2, Hanwha (Samsung chip mounter) chip mounter DECAN S2 has
better area capacity than competitors'
similar equipment, * optimized High-speed placement of small
components; The DECAN S2 high-speed chip
placement machine is equipped with 10 shafts per head and is
suitable for dual cantilever, magnetically levitated
high-performance placement machines, which can achieve the highest
speed in the world's same-class products.
92,000CPH. Welcome to "Hanwha decan s2, original Samsung high speed
placement machine, Hanwha magnetic
suspension pick and place machine"
The SM482PLUS can perform high-speed placement of chips at
40,000CPH and QFPs at one per 1.1 seconds, respectively (each at
optimum speed) by applying the on-the-fly recognition technology
patented by Techwin, which enables component placement at the
highest speed among all medium speed component placers. With
one-gantry structure having a high-speed piano head with 10
nozzles,the machine can be operated with minimum manpower using one
side of the machine. Being able to produce long boards with lengths
of up to 1,500mm, the machine boasts of its applicability to the
largest PCBs among SM series component placers.
| Model | DECAN S1 |
| Alignment | Fly Camera + Fix Camera |
| The number of spindles | 10 spindles x 1 Gantry |
| Placement Speed | 47,000 CPH (Optimum) |
| Placement Accuracy | ±28μm @ Cpk≥ 1.0 |
| Fly Camera | 03015 ~ □16mm Fix Camera |
| 42mm ~ □55mm (MFOV) L55mm ~ L75mm Connector (MFOV) |
| Max. Height | 10mm (Fly), 15mm (Fix) |
| PCB Min. Size (mm) | 50(L) x 40(W) |
| PCB Max. Size (mm) | 510(L) x 510(W)Option~ Max. 1,500(L) x 460(W) |
| PCB Thickness (mm) | 0.38 ~ 4.2 |
| Feeder Capacity (8mm standard) | 60ea / 56ea (Fixed feederbase / Docking Cart)120ea / 112ea (Fixed
feederbase / Docking Cart)- Option |
| Power | 3Phase AC200 / 208 / 220 / 240 / 380 / 415VMax. 3.5kVA |
| Air Consumption | 5.0~7.0kgf/cm250Nℓ/min (Vacuum Pump) |
| Weight (kg) | Approx. 1,600 |
| External Dimension (mm) | 1,430(L) x 1,740(D) x 1,485(H) |
| Model Name |
SM471plus |
SM481plus |
SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
