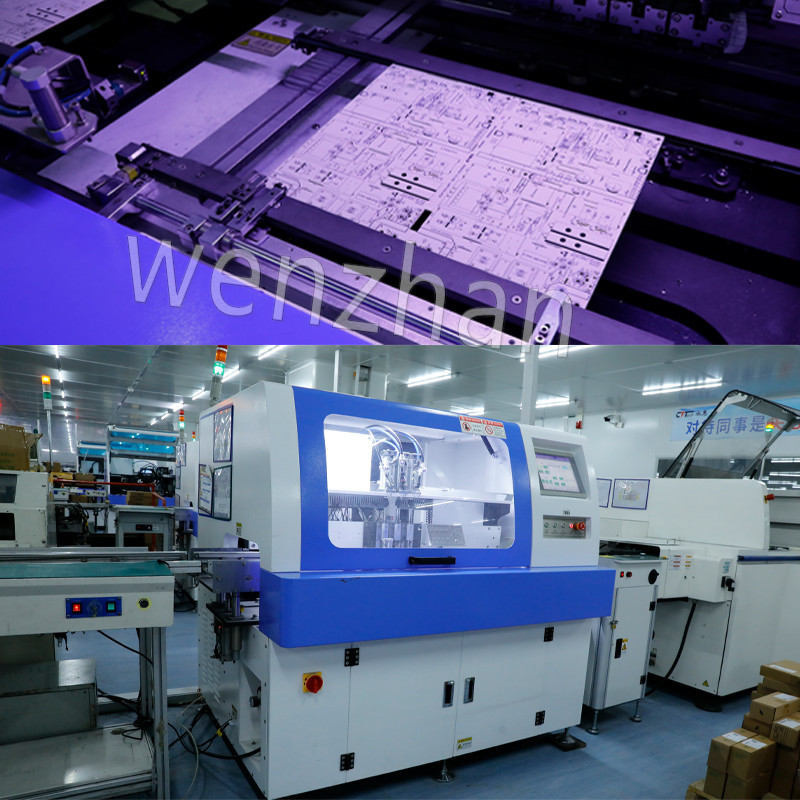

High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine

Shenzhen Wenzhan Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine from wholesalers

    Buy cheap High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine from wholesalers
    • Buy cheap High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine from wholesalers
    • Buy cheap High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine from wholesalers
    • Buy cheap High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine from wholesalers
    • Buy cheap High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine from wholesalers

    High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine

    Ask Lasest Price
    Brand Name : WZ
    Model Number : WZ-460F
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500
    Delivery Time : 3-5 day
    • Product Details
    • Company Profile

    High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine

    High Precision Conformal Coating Machine Automatic UV Conformal PCB /PCBA Glue Dispenser Automated SMT Coating Line Machine


    The SMT (Surface Mount Technology) Coating Line Machine is an essential piece of equipment used in the electronics manufacturing industry for applying protective coatings to printed circuit boards (PCBs). This process enhances the durability and reliability of electronic components by providing moisture, dust, and chemical resistance.
    Working Principle:
    1. Coating Preparation: The machine begins with the preparation of the coating material, which can be a conformal coating or an encapsulant. This material is typically applied in liquid form.
    2. PCB Loading: The PCBs are securely loaded onto the conveyor system of the coating line. Proper alignment is crucial to ensure uniform coating.
    3. Coating Application: The machine utilizes various application methods, such as spray, dip, or selective coating. In spray coating, a robotic arm or nozzle applies a fine mist of the coating material evenly across the PCB surfaces. Dip coating involves immersing the PCBs in the coating solution, while selective coating applies the material only to specific areas.
    4. Curing Process: After the coating is applied, the PCBs are moved through a curing section where heat or UV light is used to solidify the coating. This step ensures that the coating adheres properly and provides the desired protective properties.
    5. Quality Inspection: The coated PCBs undergo inspection to check for uniformity and coverage. Advanced vision systems can identify defects or inconsistencies in the coating.

    Specifications
    ModelWZ-460FWZ-460FR
    Rack dimensionsL1060mm*W1200mm*H1700mmL1250mm*W1320mm*H1700mm
    Weight700kg800kg
    ControlIndustrial computer+ motion control card
    ProgrammingManual Teaching
    SoftwareCoating Machine Intelligent Selective Control Software
    PCB transmission height900±20mm
    Transportation speedMax 300mm/s
    Transport DirectionL→R(R→L)
    Transmission modeStainless steel chain + stepper motor
    PCB width range50-450mm50-580mm
    Width adjustmentStepper motor electric width adjustment
    X. Y-axis drive modeServo motor + high-precision screw module
    Maximum operating speed of X and Y axes1000mm/s
    X. Y-axis positioning accuracy0.01 mm
    Maximum operating speed of Z-axis500mm/s
    Z-axis drive modeServo motor + high-precision module
    Z-axis positioning accuracy0.01 mm
    U-axis drive modeServo motor + synchronous wheel/synchronous belt
    U-axis rotation angle180°
    Tilt angle of valve<35°
    The valve movesSliding table cylinder
    Number of valves2
    Valve typeCone valve/needle atomization valve
    PCB board sizeMAX W50mm*L460mm50-580
    PCB board component heightMAX 100mm
    Cleaning functionThe device comes with a built-in cleaning function
    LightingWhite light lamp and purple light lamp
    Power supplyAC220V
    Air source≥0.4MP
    Total power2KW2.5KW
    Automatic cleaning deviceStandard
    Barcode scanning functionOptional
    CCD visual positioningOptional

    Usage Instructions:
    1. Setup: Position the SMT Coating Line Machine in a suitable environment with proper ventilation and power connections. Ensure all components and materials are ready.
    2. Prepare Coating Material: Mix or prepare the coating material as per the manufacturer's specifications to ensure optimal application.
    3. Load PCBs: Place the PCBs onto the conveyor system, ensuring they are properly aligned and secured.
    4. Configure Machine Settings: Use the machine's control panel to set parameters such as coating thickness, speed, and curing time.
    5. Start the Coating Process: Activate the machine and monitor the operation. Ensure that the coating is applied uniformly and that the curing process is effective.
    6. Regular Maintenance: Conduct routine maintenance to clean and inspect the machine, ensuring it operates efficiently.
