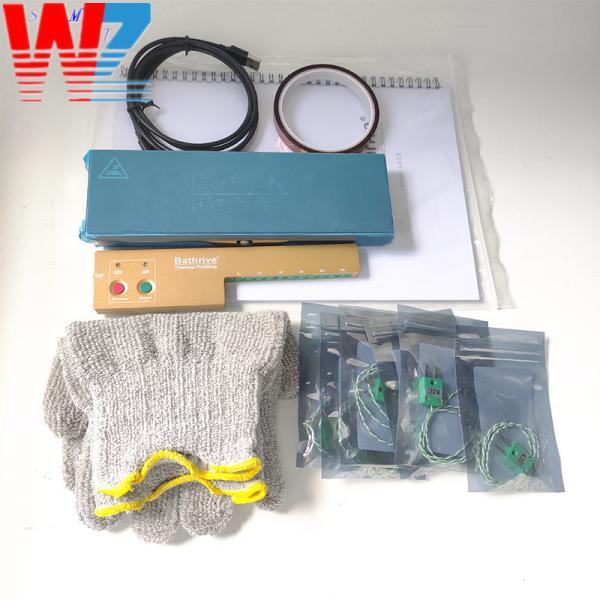

FBT60 6 Channels Reflow Oven Profiler reflow thermal Temperature
profiler
Product features:
1. Small size, powerful functions, designed for a service life of
over 10 years.
2. High measurement accuracy+/-0.5 ℃, fast speed, relatively fast
0.01 seconds/time, easily coping with any temperature measurement
priority domain challenge.
3. High speed USB interface communication and charging integrated,
no additional charging required.
4. Three trigger start methods and four trigger stop methods can be
optimized and matched freely to achieve intelligent start stop
without manual intervention.
5. 200mA polymer rechargeable battery power supply.
6. Up to 100 sets of curve overlap analysis.
7. Large enough to save 255 sets of temperature curve data.
8. Complete firmware information prompts, users can view the
instrument's usage records at any time Status and hardware
configuration information
| Product name | FBT60 reflow oven profiler |
| Instrument model | FBT60 |
| Number of channels | 6 |
| Instrument size | 222 * 60 * 10 (millimeters) |
| Measurement accuracy | ± 0.5 ℃ |
| Temperature resolution | 0.1 ℃ S |
| Sampling speed | 100 times/second~1 hour/time |
| Storage space | 128Mb |
| Number of storage groups | 255 groups |
| Battery capacity | 1000mA explosion-proof and high-temperature resistant battery |
| Instrument startup mode | temperature, time, button |
| Instrument stop mode | temperature, time, button, communication |
| Instrument operating temperature: | -40~85 ℃ |
| Instrument temperature measurement range | -200~1370 ℃ |
| Thermocouple type | K-type |
| Communication port | USB |
| Software language | Simplified Chinese, Traditional Chinese, English |
| Software platform | WIN-XP, 7, 10, 11 (32 or 64 bit system) |
